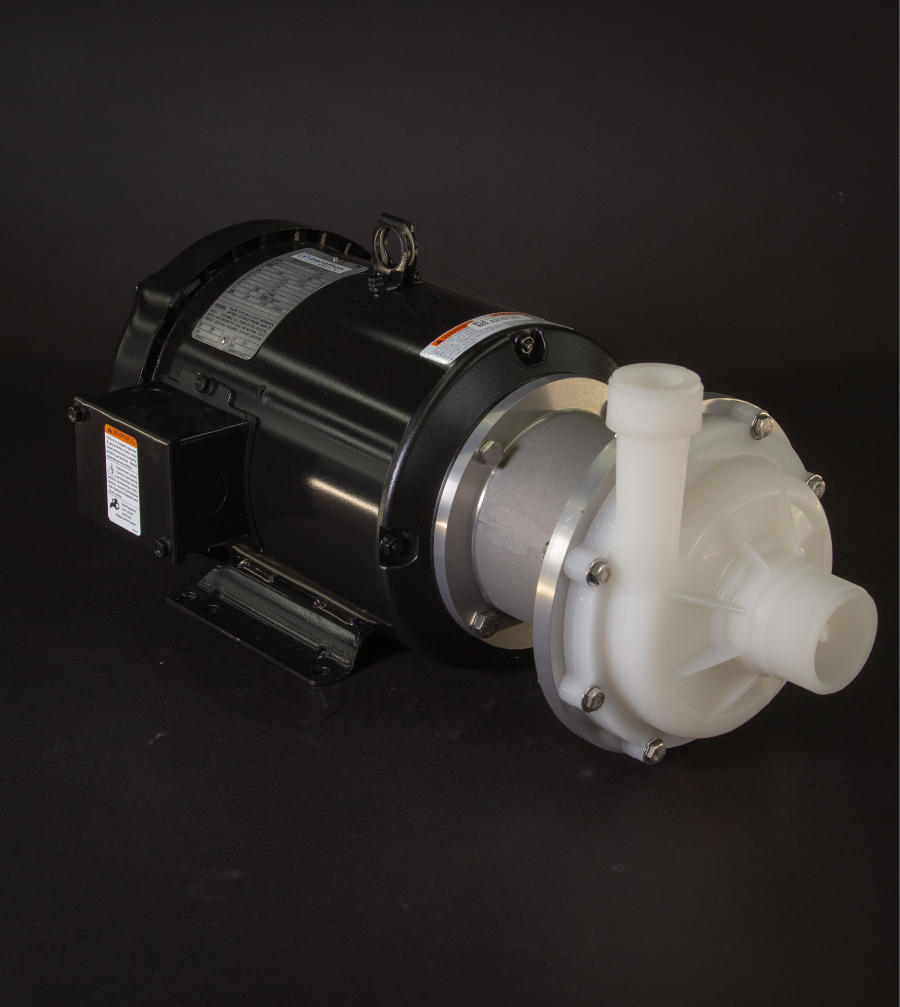

TE-7.5K-MD Magnetic Drive Pump
March Pump’s industrial TE-7.5K-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and deionized water systems. It is capable of generating a maximum flow of 82 gallons per minute at 40 feet, and its maximum head is 85 Feet (37PSI).
Unit System |
60Hz US |
Metric |
---|---|---|
Max Flow | 82 GPM | 310 LPM |
Max Head | 85 FT | 26 M |
Power | 2 HP | 1.49 KW |
50Hz US |
Metric |
71 GPM | 268 LPM |
59 FT | 18 M |
2 HP | 1.49 KW |
- Wet End: Natural Kynar (Front Housing, Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), Carbon (Bushing)
- Max Internal Pressure: 60 PSI / 4.1 bar
- Max Internal Temperature: 190 °F / 87 °C
- Motor Options: Available in Explosion Proof and 575V Motor
- Note: Product image may be different than actual product received.
Pump Curves & General Installation Sheets
Part Numbers

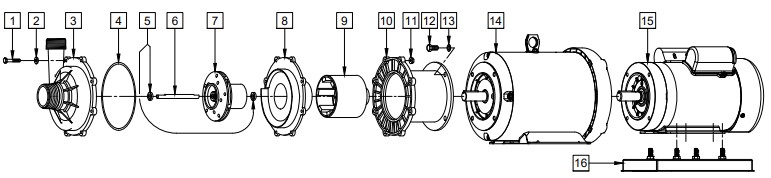

Parts Breakdown
Options
Dimensional Drawings
Motor Information
Perfect for Applications Including
Applications for the TE-7.5K-MD Magnetic Drive Pump include chemical recirculation, chemical transfer, microchip manufacturing, deionized water systems, refrigerators, scrubber systems, detergent mixers, computer cooling, carbon arc furnace cooling, silver recovery systems, and marine air conditioners.
Great for Chemicals Including
The TE-7.5K-MD has pumped Acetic Acid, Citric Acid, Ethylene Glycol, Formaldehyde, Hydrochloric Acid (Muriatic), Hydrofluoric Acid, Hydrogen Peroxide, Nitric Acid, Phosphoric Acid, Potassium Chloride, Sodium Chloride, Sodium Hypochlorite, Sulfuric Acid, Fresh Water, Salt Water, DI Water, and many more chemicals. The TE-7.5K-MD may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the TE-7.5K-MD. Chemical Resistance Chart
Summary Paragraph
March Pump’s industrial TE-7.5K-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and deionized water systems. It is capable of generating a maximum flow of 82 gallons per minute at 40 feet, and its maximum head is 85 Feet (37PSI). The standard wet end (the materials that come into contact with the solution) is composed of natural Kynar, Viton, Carbon, and Ceramic. The inlet connection is 2 inch male pipe thread, and the outlet is 1-1/2 inch male pipe thread. There are two standard motors. The first is a 1 Phase 60 hertz 115/208/230V and 50 hertz 100/200V 2 horsepower totally enclosed fan cooled motor. The second is a Weg 3 Phase 60 hertz 230/460V and 50 hertz 190/380V 2 horsepower totally enclosed fan cooled motor. There are performance differences between the hertz options. The maximum internal pressure the pump can tolerate is 60PSI, and the maximum liquid temperature is 190 Fahrenheit or 87 Celsius. The March TE-7.5K-MD centrifugal magnetic drive pump is capable of handling mildly, or highly corrosive chemicals, acids, and solvents. To determine if the March TE-7.5K-MD is suitable for your application, please contact March Pump.
