TE-320CP-MD 1Ph Magnetic Drive Pump
March Pump’s industrial TE-320CP-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 3.3 gallons per minute at 1 foot, and its maximum head is 40 Feet (17PSI).
Unit System |
60Hz US |
Metric |
---|---|---|
Max Flow | 3.3 GPM | 12.5 LPM |
Max Head | 40 FT | 12.2 M |
Power | 0.2 HP | 0.149 KW |
50Hz US |
Metric |
2.9 GPM | 11.3 LPM |
28.8 FT | 8.8 M |
0.2 HP | 0.149 KW |
- Wet End: Polypropylene (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft and Thrust Washer)
- Max Internal Pressure: 50 PSI / 3.4 bar
- Max Liquid Temperature: 190 °F / 87 °C

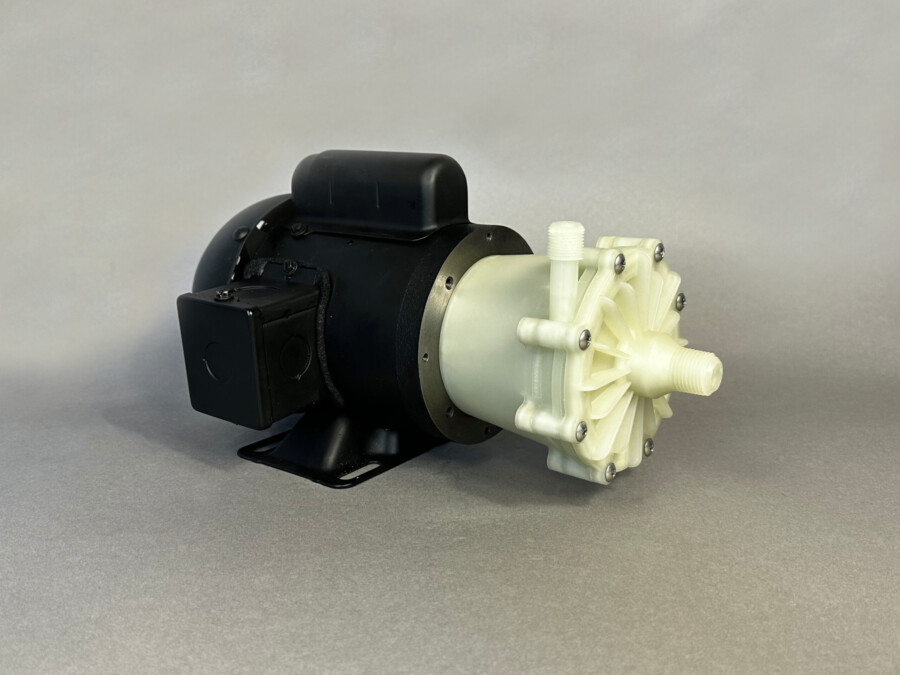

- Note: Product image may be different than actual product received.
Pump Curves & General Installation Sheets
Part Numbers
Parts Breakdown
Options
Dimensional Drawings
Motor Information
Perfect for Applications Including
The 320-CP-MD has the durability for continuous duty in applications requiring low flow and high head. Typical applications include laser cooling, medical systems, filter systems, and various processing equipment in the electronics industry.
Great for Chemicals Including
The TE-320CP-MD has pumped Acetic Acid, Citric Acid, Ethylene Glycol, Formaldehyde, Hydrochloric Acid (Muriatic), Nitric Acid, Phosphoric Acid, Potassium Chloride, Potassium Hydroxide, Sodium Hydroxide (Caustic Soda), Sodium Chloride, Sulfuric Acid, Fresh Water, Salt Water, DI Water, and many more chemicals. The TE-320CP-MD may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the TE-320CP-MD. Chemical Resistance Chart
Summary Paragraph
March Pump’s industrial TE-320CP-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation and chemical transfer. It is capable of generating a maximum flow of 3.3 gallons per minute at 1 feet, and its maximum head is 40 Feet (17PSI). The standard wet end (the materials that come into contact with the solution) is composed of Polypropylene, Viton, and Ceramic. The inlet connection is 1/2 inch male pipe thread, and the outlet is 3/8 inch male pipe thread. The standard motor is a1 Phase 60 hertz 115/230V and 50 hertz 110/220V 0.2 horsepower totally enclosed fan cooled motor. The maximum internal pressure the pump can tolerate is 50PSI, and the maximum liquid temperature is 190 Fahrenheit or 87 Celsius. The March TE-320CP-MD centrifugal magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents. To determine if the March TE-320CP-MD is suitable for your application, please contact March Pump.
