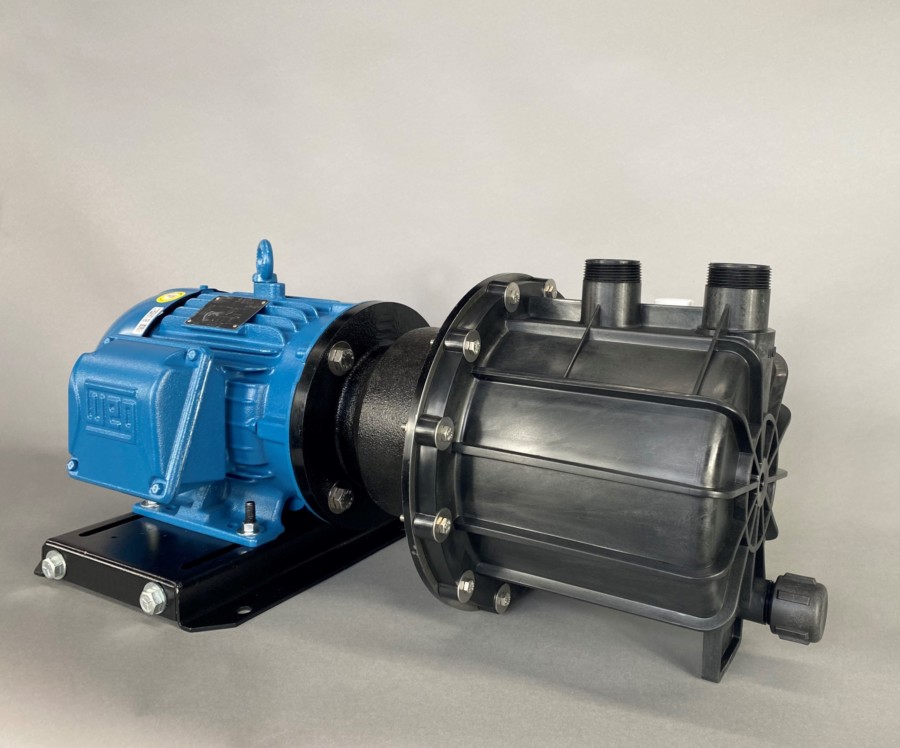

SP-TE-8P-MD 1&3 Ph Mag Drive Pump
March Pump’s industrial SP-TE-8P-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 80 gallons per minute at 20 feet, and its maximum head is 86 Feet (37PSI). When the SP-TE-8P-MD is fully primed, it is capable of having a vertical suction lift of 11 feet in 120 seconds.
Unit System |
60Hz US |
Metric |
---|---|---|
Max Flow | 80 GPM | 363 LPM |
Max Head | 86 FT | 26.2 M |
Power | 5 HP | 3.7 KW |
50Hz US |
Metric |
65 GPM | 246 LPM |
56 FT | 17 M |
5 HP | 3.7 KW |
- Wet End: Polypropylene (Housings, Impeller, Drain Plug), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), Carbon (Bushing), Teflon (Fill Plug)
- Additional Motor Options: Available in Explosion Proof or Washdown
- Max Internal Pressure: 70 PSI / 4.8 bar
- Max Liquid Temperature: 180 °F / 82 °C
- Vertical Suction Lift Note: With Carbon Bushing, Maximum Vertical Suction Lift of 16 Feet
- Vertical Suction Lift Note: With Mica Teflon Bushing, Maximum Vertical Suction Lift of 12 Feet
- Note: Product image may be different than actual product received.
Pump Curves & General Installation Sheets
Part Numbers

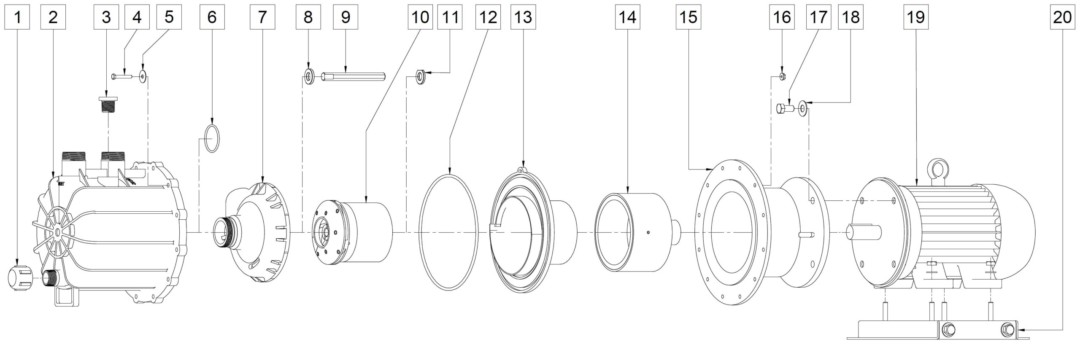

Parts Breakdown
Options
Dimensional Drawings
Motor Information
Perfect for Applications Including
Applications for the SP-TE-8P-MD Magnetic Drive Self Priming Pump include chemical recirculation, chemical transfer, and scrubber systems. They are ideal for non ported tanks and siphon feed tanks.
Great for Chemicals Including
The SP-TE-8P-MD has pumped Acetic Acid, Citric Acid, Ethylene Glycol, Formaldehyde, Hydrochloric Acid (Muriatic), Nitric Acid, Phosphoric Acid, Potassium Chloride, Potassium Hydroxide, Sodium Hydroxide (Caustic Soda), Sodium Chloride, Sulfuric Acid, Fresh Water, Salt Water, DI Water, and many more chemicals. The SP-TE-8P-MD may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the SP-TE-8P-MD. Chemical Resistance Chart
Summary Paragraph
March Pump’s industrial SP-TE-8P-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 80 gallons per minute at 20 feet, and its maximum head is 86 Feet (37PSI). When the SP-TE-8P-MD is fully primed, it is capable of having a vertical suction lift of 11 feet in 120 seconds with the largest impeller diameter. The maximum lift or equivalent is 16 feet. The standard wet end (the materials that come into contact with the solution) is composed of Polypropylene, Viton, Carbon, Teflon and Ceramic. The inlet and outlet connection is 1-1/2 inch male pipe thread. There are performance differences between the hertz options. The maximum internal pressure the pump can tolerate is 70PSI, and the maximum liquid temperature is 180 Fahrenheit or 82 Celsius. The March SP-TE-8P-MD centrifugal magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents. To determine if the March SP-TE-8P-MD is suitable for your application, please contact March Pump.
