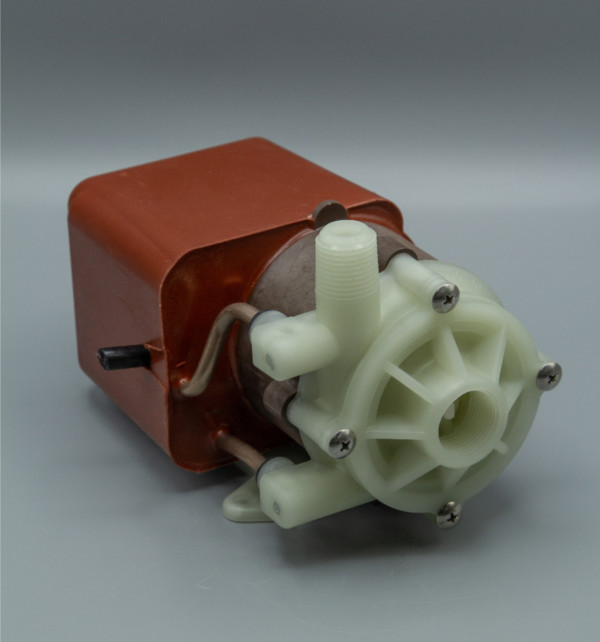

LC-3CP-MD Magnetic Drive Pump
March Pump’s industrial LC-3CP-MD is an American submersible seal-less centrifugal magnetic drive pump. It is capable of generating a maximum flow of 8.5 gallons per minute at 4 feet, and its maximum head is 19 Feet (8PSI). The LC-3CP-MD pump may be used submerged or not submerged.
Unit System |
60Hz US |
Metric |
---|---|---|
Max Flow | 8.5 GPM | 32.2 LPM |
Max Head | 19 FT | 5.8 M |
Power | 0.05 HP | 0.037 KW |
50Hz US |
Metric |
8.2 GPM | 31 LPM |
14.1 FT | 4.3 M |
0.05 HP | 0.037 KW |
- Wet End: Polypropylene (Front and Rear Housing, Impeller), Cupric Nickel (Cooling Tube), Buna N (O-Ring, Cooling Tube Seal), Ceramic (Shaft, Thrust Washer), Ceramic Magnet
- Uses: Submersible or Open Air
- When submerged, the following is also in contact with the solution: Epoxy, Stainless Steel, Noryl, Cord
- Max Internal Pressure: 25 PSI / 1.7 bar
- Max Liquid Temperature: 130 °F / 54 °C
- Note: Product image may be different than actual product received.
Pump Curves & General Installation Sheets
Part Numbers
Parts Breakdown
Options
Dimensional Drawings
Motor Information
Perfect for Applications Including
The most common application for the LC-3CP-MD Magnetic Drive Pump is for marine air conditioning and fountains.
Great for Chemicals Including
The LC-3CP-MD has pumped Fresh Water and Salt Water. The LC-3CP-MD may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the LC-3CP-MD. Chemical Resistance Chart
Summary Paragraph
March Pump’s industrial LC-3CP-MD is an American submersible seal-less centrifugal magnetic drive pump. It is capable of generating a maximum flow of 8.5 gallons per minute at 4 feet, and its maximum head is 19 Feet (8PSI). The LC-3CP-MD pump may be used submerged or not submerged. The standard wet end (the materials that come into contact with the solution) is composed of Polypropylene, Buna N, Cupric Nickel, Ceramic, and Ceramic Magnet. When submerged, Epoxy, Stainless Steel, Noryl, and the Cord are also in contact with the solution. The inlet connection is 3/4 inch female pipe thread, and the outlet is 1/2 inch male pipe thread. The standard motor is a 1 Phase 115V or 230V 0.05 Horsepower motor, which can be run on either 50 or 60 hertz (there are performance differences between the hertz options). The maximum internal pressure the pump can tolerate is 25PSI, and the maximum liquid temperature is 130 Fahrenheit or 54 Celsius. The March LC-3CP-MD centrifugal magnetic drive pump is capable of handling fresh water, salt water, and mild chemicals. To determine if the March LC-3CP-MD is suitable for your application, please contact March Pump.
