BC-4K-MD Magnetically Coupled Pump
March Pump’s industrial BC-4K-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 14 gallons per minute at 1 feet, and its maximum head is 21.5 Feet (9PSI).
Unit System |
60Hz US |
Metric |
---|---|---|
Max Flow | 14 GPM | 53 LPM |
Max Head | 21.5 FT | 6.55 M |
Power | 0.1 HP | 0.07 KW |
50Hz US |
Metric |
13.2 GPM | 50 LPM |
15.4 FT | 4.7 M |
0.1 HP | 0.07 KW |
- Wet End: Kynar (Front and Rear Housing, Impeller), Ceramic (Shaft, Thrust Washers), Viton (O-Ring)
- Available with 750 Priming Chamber:
- Max Internal Pressure: 50 PSI / 3.4 bar
- Max Liquid Temperature: 190 °F / 87 °C
- Note: Product image may be different than actual product received.
Pump Curves & General Installation Sheets
Part Numbers

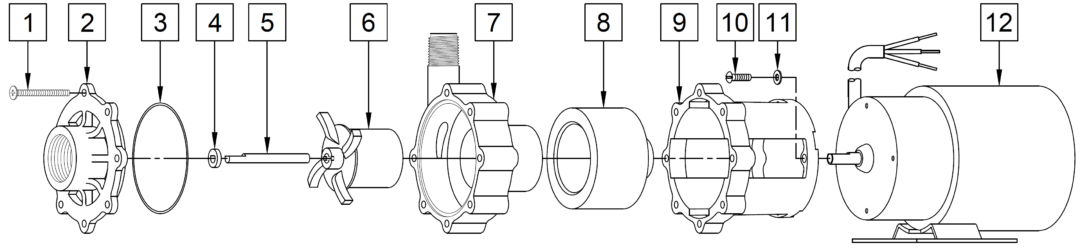

Parts Breakdown
Options
Dimensional Drawings
Motor Information
Perfect for Applications Including
Applications for the BC-4K-MD Magnetic Drive Pump include electronic medical equipment, etching machines, photo processing equipment, hospital thermal blankets, and food heating cabinets.
Great for Chemicals Including
The BC-4K-MD has pumped Acetic Acid, Citric Acid, Ethylene Glycol, Formaldehyde, Hydrochloric Acid (Muriatic), Hydrofluoric Acid, Hydrogen Peroxide, Nitric Acid, Phosphoric Acid, Potassium Chloride, Sodium Chloride, Sodium Hypochlorite, Sulfuric Acid, Fresh Water, Salt Water, DI Water, and many more chemicals. The BC-4K-MD may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the BC-4K-MD. Chemical Resistance Chart
Summary Paragraph
March Pump’s industrial BC-4K-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 14 gallons per minute at 1 feet, and its maximum head is 21.5 Feet (9PSI). The standard wet end (the materials that come into contact with the solution) is composed of glass filled Kynar (PVDF), Viton, and Ceramic. The inlet connection is 1 inch female pipe thread, and the outlet is 1/2 inch male pipe thread. The standard motor is a 1 Phase 115V or 230V 0.1 horsepower blast cooled motor, which can be run on either 50 or 60 hertz (there are performance differences between the hertz options). The maximum internal pressure the pump can tolerate is 75PSI, and the maximum liquid temperature is 200 Fahrenheit or 93 Celsius. The March BC-4K-MD centrifugal magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents. To determine if the March BC-4K-MD is suitable for your application, please contact March Pump.
