BC-2CP-MD Mag Drive Pump
March Pump’s industrial BC-2CP-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation and chemical transfer. It is capable of generating a maximum flow of 5 gallons per minute at 2 feet, and its maximum head is 13 Feet (5.5PSI).
Unit System |
60Hz US |
Metric |
---|---|---|
Max Flow | 5 GPM | 18.9 LPM |
Max Head | 13 FT | 4 M |
Power | 0.025 HP | 0.018 KW |
50Hz US |
Metric |
4.9 GPM | 18.5 LPM |
8.9 FT | 2.7 M |
0.025 HP | 0.018 KW |
- Wet End: Polypropylene (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washer)
- Max Internal Pressure: 50 PSI / 3.4 bar
- Max Liquid Temperature: 190 °F / 87 °C
- Note: Product image may be different than actual product received.
Pump Curves & General Installation Sheets
Part Numbers

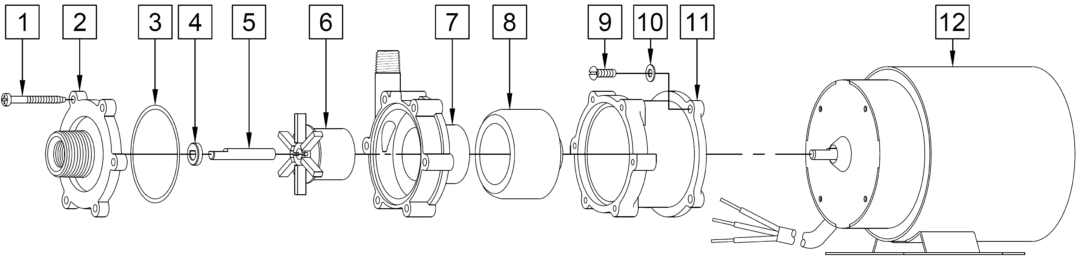

Parts Breakdown
Options
Dimensional Drawings
Motor Information
Perfect for Applications Including
Applications for the BC-2CP-MD Mag Drive include etching equipment, photographic processing equipment, ice flakers, plate processors, and marine air conditioning.
Great for Chemicals Including
The BC-2CP-MD has pumped Acetic Acid, Citric Acid, Ethylene Glycol, Formaldehyde, Hydrochloric Acid (Muriatic), Nitric Acid, Phosphoric Acid, Potassium Chloride, Potassium Hydroxide, Sodium Hydroxide (Caustic Soda), Sodium Chloride, Sulfuric Acid, Fresh Water, Salt Water, DI Water, and many more chemicals. The BC-2CP-MD may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the BC-2CP-MD. Chemical Resistance Chart
Summary Paragraph
March Pump’s industrial BC-2CP-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation and chemical transfer. It is capable of generating a maximum flow of 5 gallons per minute at 2 feet, and its maximum head is 13 Feet ( 5.5PSI). The standard wet end (the materials that come into contact with the solution) is composed of Polypropylene, Viton, and Ceramic. The inlet connection is 3/8 female pipe thread and 3/4 male pipe thread, and the outlet is 1/4 inch male pipe thread. The standard motor is a 1 Phase 115V or 230V 0.025 Horsepower blast cooled motor, which can be run on either 50 or 60 hertz (there are performance differences between the hertz options). The maximum internal pressure the pump can tolerate is 50PSI, and the maximum liquid temperature is 190 Fahrenheit or 87 Celsius. The March BC-2CP-MD centrifugal magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents. To determine if the March BC-2CP-MD is suitable for your application, please contact March Pump.
