815-PL-C Magnetic Drive Pump
March Pump’s industrial 815-PL-C is an American seal-less centrifugal magnetic drive pump ideal for applications such as home brewing and hot water systems. It is capable of generating a maximum flow of 8 gallons per minute at 3 feet, and its maximum head is 18.6 Feet (8PSI).
Unit System |
60Hz US |
Metric |
---|---|---|
Max Flow | 8 GPM | 30.3 LPM |
Max Head | 18.6 FT | 5.7 M |
Power | 0.04 HP | 0.029 KW |
50Hz US |
Metric |
7.9 GPM | 30 LPM |
13.5 FT | 4.1 M |
0.04 HP | 0.029 KW |
- Wet End: Polysulfone (Front Housing), Stainless Steel (Rear Housing and Shaft), Teflon (Thrust Washer), Silicone (O-Ring), Ryton/Teflon/Glass (Impeller)
- Max Internal Pressure: 50 PSI / 3.4 bar
- Max Liquid Temperature: 250 °F / 121 °C
- Note: Product image may be different than actual product received.
Pump Curves & General Installation Sheets
Part Numbers

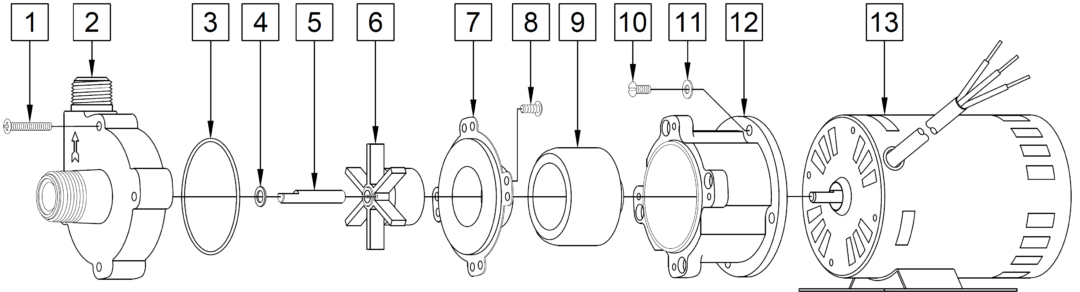

Parts Breakdown
Options
Dimensional Drawings
Motor Information
Perfect for Applications Including
Applications for the 815-PL-C Magnetic Drive Pump include hot water systems, solar heating, and fryers.
Great for Chemicals Including
The 815-PL-C has pumped Cutting Oils, Ethylene Glycol, Hot Water, Hot Wort and Salt Water. The 815-PL-C may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the 815-PL-C. Chemical Resistance Chart
Summary Paragraph
March Pump’s industrial 815-PL-C is an American seal-less centrifugal magnetic drive pump ideal for applications such as home brewing and hot water systems. It is capable of generating a maximum flow of 8 gallons per minute at 3 feet, and its maximum head is 18.6 Feet (8PSI). The standard wet end (the materials that come into contact with the solution) is composed of Polysulfone, Stainless Steel, Teflon, Silicone and Ryton/Teflon/Glass. The inlet connection is 0.375 female pipe thread and 0.75 male pipe thread, and the outlet is 0.5 inch male pipe thread. The standard motor is a 1 Phase 115V or 230V 0.04 Horsepower fan cooled motor, which can be run on 50 or 60 hertz (there are performance differences between the hertz options). The maximum internal pressure the pump can tolerate is 50PSI, and the maximum liquid temperature is 250 Fahrenheit or 121 Celsius. To determine if the March 815-PL-C is suitable for your application, please contact March Pump.
